Description

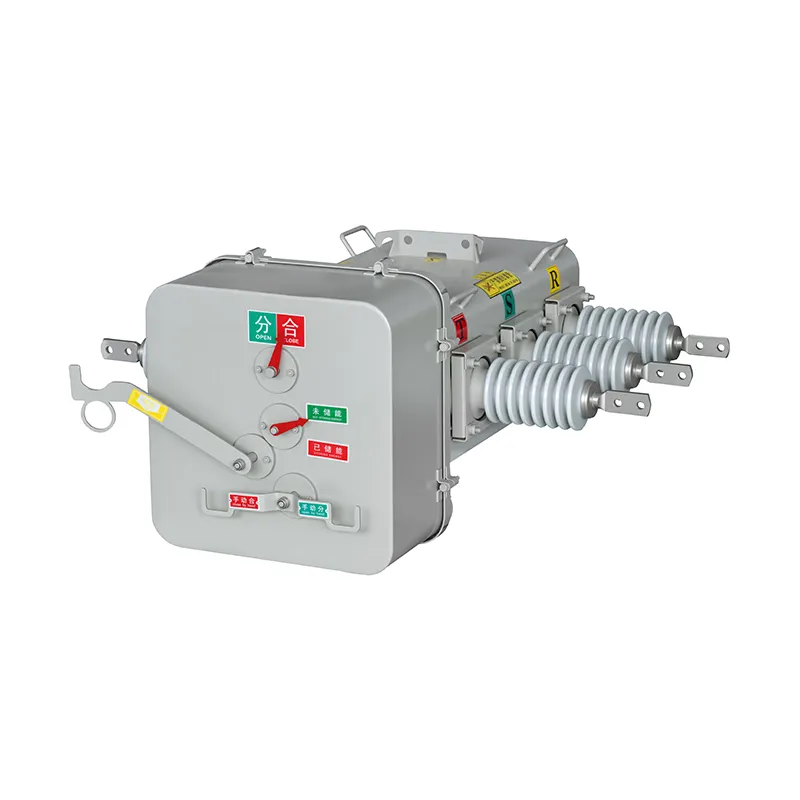

The Tank Circuit Breaker is a high-performance, SF₆ gas-insulated switchgear device designed for AC power systems. It provides safe and reliable switching of load, overload, and short-circuit currents, protecting power equipment and ensuring system stability. Widely used in substations, power plants, and industrial high-voltage networks, this circuit breaker is ideal for demanding electrical environments.
Key Features:
- Durable Tank Construction: Made from high-strength alloy steel or aluminum, ensuring excellent mechanical strength and tight sealing.
- Advanced Arc Extinguishing: Features a self-blast or hybrid arc chamber with copper-tungsten contacts for efficient arc quenching and long service life.
- Reliable Operating Mechanism: Available with spring or hydraulic operating mechanisms for fast, precise switching operations. Includes status indicators for easy monitoring.
- Insulated Support: Uses porcelain or composite insulators to ensure reliable isolation and mechanical stability.
- Integrated Current Transformers: For accurate current measurement and seamless integration with protection devices.
- Wide Voltage & Current Ratings: Supports 110kV–500kV systems and currents up to 4000A, capable of handling short-circuit currents up to 63kA.
- Safe and Efficient Operation: SF₆ gas provides superior insulation and arc extinguishing, maintaining high performance even under extreme conditions.
- Easy Maintenance & Diagnostics: Equipped with accessible components and SF₆ monitoring, enabling hassle-free inspection, maintenance, and fault management.
Applications:
- Power transmission and distribution substations
- Industrial electrical networks
- Power plants and renewable energy facilities
